Calculating Drilling Efficiency: Standardising MSE Equations for North Sea ROP Benchmarking

Reviewing 1-Hz surface logging data from an 8.5-inch reservoir section in the Central North Sea often presents sharp operational anomalies. A typical event occurs when the Rate of Penetration drops rapidly from 25 metres per hour to 10 metres per hour while maintaining a constant surface Weight on Bit of 150 kilonewtons. Without a single standardized calculation across active rigs, operators risk misinterpreting mechanical dysfunctions as formation changes, driving up non-productive time in high-spread-cost North Sea environments. Decoupling true rock strength changes from downhole dysfunctions like bit balling, cutter wear, or stick-slip requires establishing a single, fleet-wide mechanical efficiency baseline.

SECTION 1: Defining the Input Parameters for a North Sea Reservoir Section

Rig operations in the UKCS typically track over 10 active drilling measures to evaluate efficiency across shifting formations, as detailed in IADC/SPE 208777. These primary channels include surface weight on bit, surface rotational speed, surface torque, rate of penetration, mud flow rate, standpipe pressure, differential pressure, hook load, downhole weight on bit, and downhole torque.

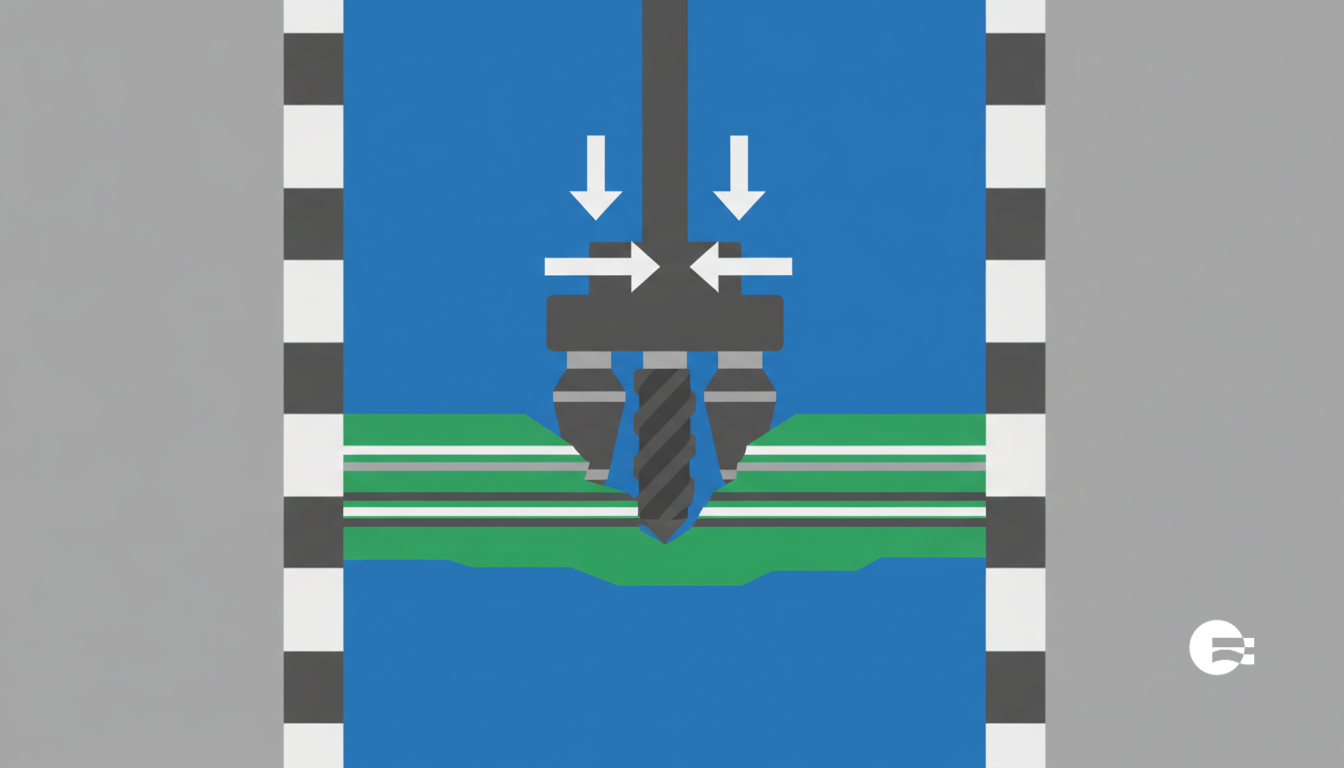

Figure 1. Primary physical forces acting on a drill bit during rock cutting operations.

A baseline dataset for an 8.5-inch (0.2159 m) hole section includes a surface Weight on Bit of 150 kN, bit rotational speed of 120 RPM, surface torque of 18 kNm, and an ROP of 15 m/hr. Collecting these measurements accurately requires constant verification of sensor zero-offsets and signal sampling rates.

Inconsistent parameter logging leads to significant variance in efficiency metrics, with research from IADC/SPE 208732 identifying up to 14 distinct input measurement errors. These errors include depth-tracking hysteresis, asynchronous mud-logging clock synchronization, and uncalibrated torque transducers. Manual calculation methods frequently compound these errors through improper unit conversions or manual data re-entry. By routing surface sensor feeds directly through WITSML data streaming ingest, operational engineering teams eliminate manual data preparation while establishing clean baseline parameters.

SECTION 2: The Mechanical Specific Energy Formula and Governing Equations

The standard drilling efficiency formula relies on Teale's original 1965 Mechanical Specific Energy (MSE) equation, defining energy input per volume of rock excavated. As discussed in Standardization of Mechanical Specific Energy Equations, standardising this formulation across offshore assets establishes a strict thermodynamic foundation for benchmarking. Total Mechanical Specific Energy is expressed as the sum of axial energy input and rotary energy input per unit volume of rock destroyed:

$$MSE = MSE_{\text{axial}} + MSE_{\text{rotary}}$$

where $MSE$ is the total mechanical specific energy in Megapascals (MPa).

The axial component is calculated as WOB divided by bit cross-sectional area ($A_b = \frac{\pi \cdot d^2}{4}$), yielding axial energy density in Megapascals (MPa). The axial component equation is:

$$MSE_{\text{axial}} = \frac{WOB}{A_b}$$

where $WOB$ is the weight on bit in kilonewtons, $d$ is the bit diameter in metres, and $A_b$ is the cross-sectional area of the bit in square metres.

The rotary component dominates energy input, expressed as $\frac{120 \cdot \pi \cdot RPM \cdot Torque}{A_b \cdot ROP}$, converting mechanical rotation into equivalent rock-breaking energy. The rotary equation is defined as:

$$MSE_{\text{rotary}} = \frac{120 \cdot \pi \cdot N \cdot T}{A_b \cdot ROP}$$

where $N$ is the bit rotational speed in revolutions per minute (RPM), $T$ is the surface or bit torque in kilonewton-metres (kNm), $ROP$ is the rate of penetration in metres per hour (m/hr), and $A_b$ is the bit cross-sectional area in square metres. The factor of 120 acts as a unit conversion multiplier for rotational frequency and operational time scales. In conventional rotary drilling, the rotary term accounts for 95% to 98% of total mechanical energy expended at the bit.

SECTION 3: Step-by-Step Calculation for Baseline ROP Benchmarking

Evaluating drilling performance across a fleet requires a transparent, step-by-step mathematical progression using standard SI units. Consider the baseline parameters for the 8.5-inch reservoir section drilling at 15 m/hr.

First, calculate bit cross-sectional area: for an 8.5-inch (0.2159 m) bit, the area $A_b$ equals 0.0366 m^2. Using the bit diameter $d = 0.2159\text{ m}$:

$$A_b = \frac{\pi \cdot (0.2159\text{ m})^2}{4} = 0.036614\text{ m}^2 \approx 0.0366\text{ m}^2$$

Next, compute the axial component: 150 kN divided by 0.0366 m^2 equals 4.10 MPa of axial energy. Applying the axial formula:

$$MSE_{\text{axial}} = \frac{150\text{ kN}}{0.036614\text{ m}^2} = 4096.79\text{ kPa} = 4.10\text{ MPa}$$

Next, compute the rotary component: converting 18 kNm torque at 120 RPM and 15 m/hr ROP yields 221.76 MPa, producing a total MSE of 225.86 MPa. Applying the rotary equation:

$$MSE_{\text{rotary}} = \frac{120 \cdot \pi \cdot 120\text{ RPM} \cdot 18\text{ kNm}}{0.036614\text{ m}^2 \cdot 15\text{ m/hr}} = \frac{814300.8}{3.6614 \cdot 15} = 221.76\text{ MPa}$$

Summing both energy components produces the total baseline Mechanical Specific Energy:

$$MSE = 4.10\text{ MPa} + 221.76\text{ MPa} = 225.86\text{ MPa}$$

Now apply this standardized baseline calculation to the scenario where ROP drops from 25 m/hr to 10 m/hr under a constant 150 kN WOB and 120 RPM. If surface torque remains elevated at 18 kNm while ROP collapses to 10 m/hr, the rotary component surges from 133.06 MPa up to 332.64 MPa, driving total MSE to 336.74 MPa. This 49% jump in specific energy without an increase in WOB signals severe mechanical bit dysfunction, such as bit balling in mudstones or cutter micro-fracturing, rather than an unannounced hard rock boundary.

SECTION 4: Sanity Checks, Quality Control, and Primary Measurement Errors

Compare calculated MSE against confined compressive strength (CCS) data; theoretical maximum drilling efficiency occurs when MSE approaches 100% of formation CCS. As demonstrated in classic studies on Drilling Efficiency and Rate of Penetration, when PDC bit cutters engage rock with zero balling and optimal hydraulics, the minimum energy required to remove rock equals the confined compressive strength of that formation ($MSE \approx CCS$). When calculated operational MSE exceeds formation CCS by three to five times, energy is being lost to parasitic mechanical dysfunctions or cuttings re-grinding.

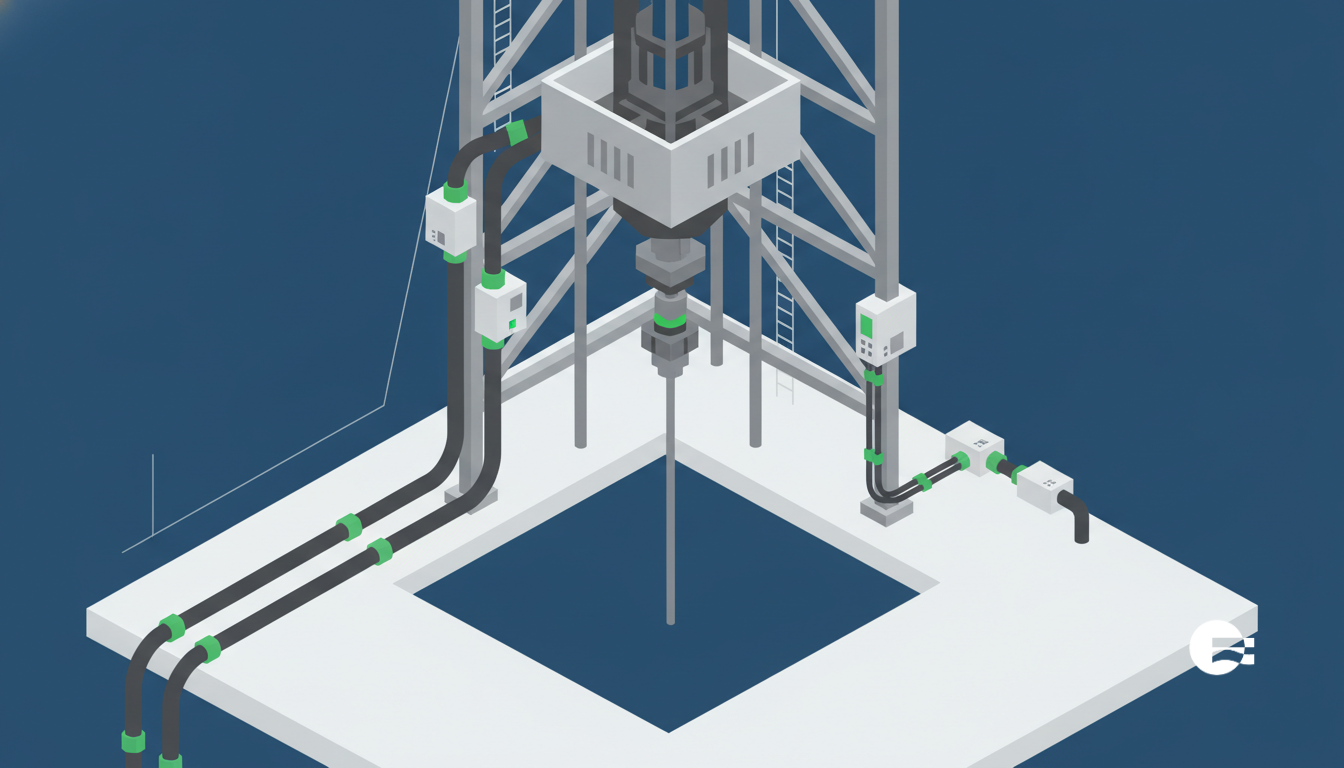

Figure 2. Surface sensor installation points vulnerable to signal calibration drift.

Surface torque measurement errors due to wellbore friction can overestimate actual bit-level energy consumption by 30% to 50% in high-angle North Sea wells. Long tangent sections in S-shaped or extended-reach wells create substantial drillstring contact friction against casing and formation walls. This wall contact consumes rotational energy before it reaches the bottom-hole assembly, artificially inflating surface MSE. Where downhole MWD weight and torque sensors are not present, torque loss models based on string mechanical friction must be subtracted from surface torque channels before computing MSE.

Correcting raw surface sensor drift using standardized procedures aligned with ISO standards ensures baseline comparability across different drilling contractors. Standards such as ISO petroleum testing standards mandate rigorous field procedures for sensor verification. Calibration routines must require drillers to tare hookload and weight-on-bit sensors off-bottom at operational mud flow rates, while top-drive torque transducers must undergo static calibration checks prior to every major hole section.
